Checking MFWD Wheel Hub Oil Level

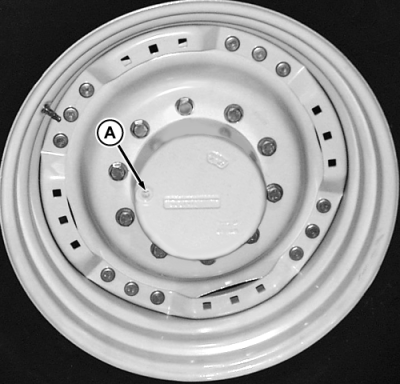

Put the tractor on level ground. Turn wheel hubs until the words OIL LEVEL are horizontal. Remove plug (A). Oil level should be just below plug hole. If low, add oil through same hole. John Deere EXTREME-GARD (85W-140) oil is recommended. (See MFWD Wheel Hub Oil in Fuels, Lubricants, and Coolant Section.)

AG,RX15494,3547 -19-19JAN00-1/1
