Changing MFWD Hub Oil

1. Put the tractor on level surface.

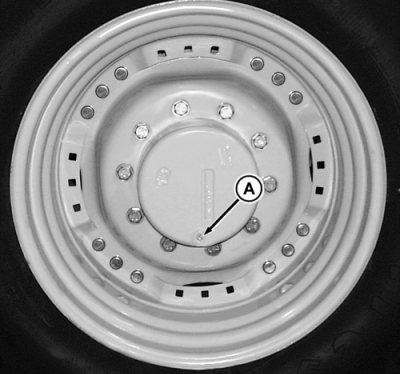

2. Rotate wheel until drain fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain-fill plug positioned horizontally after oil has drained.

4. Add John Deere EXTREME-GARD (85W-140) oil as specified in Fuels, Lubricants, and Coolant Section, through drain-fill hole until oil is even with bottom of hole. Install the plug and tighten to 70 N·m (52 lb-ft).

Specification
