Changing MFWD Axle Housing Oil

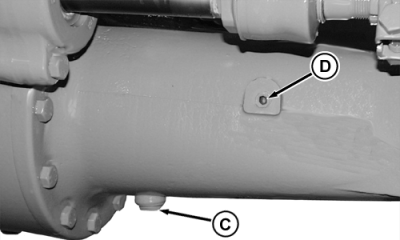

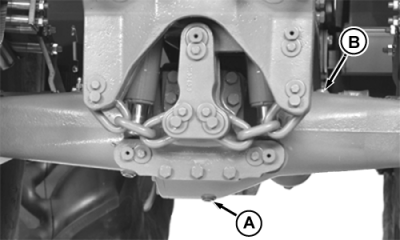

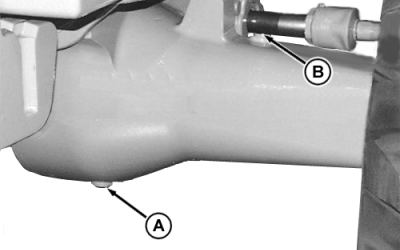

1. Remove axle housing drain plug (A) and (C). Replace plug after oil has drained.

2. Add John Deere HY-GARD oil as specified in Fuels, Lubricants, and Coolant Section through fill hole (B) until oil is even with bottom of hole (D). Install the plugs.

Specification

NOTE: Use a pipe sealant when installing plug at (D).

3. After a few minutes of operation, recheck oil level. Add more if necessary.

4. Tighten plugs all plugs to 70 N·m (52 lb-ft).

AG,RX15494,3550 -19-19JAN00-1/1
