Lubricating Triple Link Suspension (Suspended Front Axle)

NOTE: Lubricate every 250 hours under normal conditions.

Lubricate the suspended front axle at 10 hour intervals when operating in extremely wet or dusty conditions.

Use John Deere High-Temperature/Extreme-Pressure/ Non-Clay grease or other grease as specified in Fuels, Lubricants and Coolant Section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

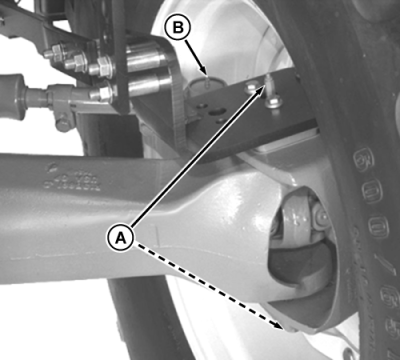

Kingpins -apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -apply several shots of grease to fittings (B).

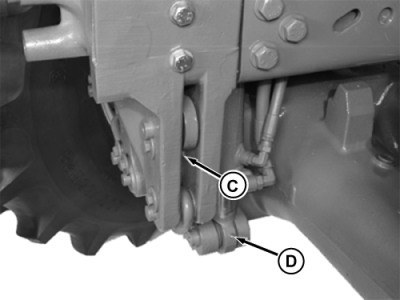

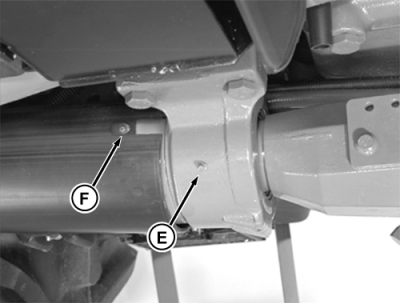

Apply grease to each bearing fitting (C), each cylinder fitting (D), to bearing support (E), and to area between seal and bearing (F).

A-Kingpins
B-Tie Rod Ends
C-Bearing (Each End)
D-Cylinders (Each End)
E-Bearing Support
F-Seal Barrier

AG,RX15494,3551 -19-19JAN00-1/1
