Lubricating Three-Point Hitch Components

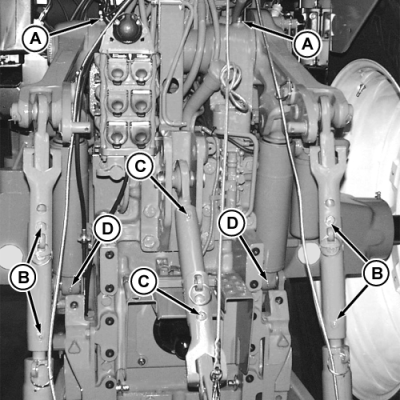

Apply several shots of grease to rockshaft fittings (A), lift links (B), and center link (C).

Lubricate lift cylinder ends (D).

Use lubricant specified in Fuels, Lubricants, and Coolant Section.

A-Rockshaft
B-Lift Links
C-Center Link
D-Lift Cylinders

AG,RX15494,3553 -19-19JAN00-1/1
