Changing Front PTO Housing Oil

Put tractor on level ground.

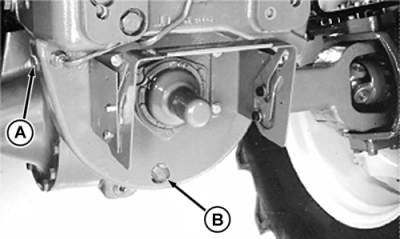

Remove housing drain plug (B). Replace plug after oil has drained.

Remove plug (A) and refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section. Replace plug.

AG,RX15494,3557 -19-19JAN00-1/1
