Lubricating Front PTO Shaft

NOTE: Lubricate every 250 hours under normal conditions.

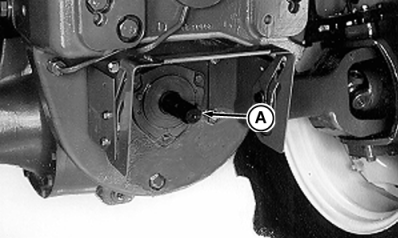

Lubricate front PTO shaft (A) at 10-hour intervals when operating tractor in extremely wet or dusty conditions. Apply grease to fitting located on back side of PTO housing.

Use Extreme Pressure, Non-Clay grease as specified in Fuels, Lubricants and Coolant Section.

AG,RX15494,3558 -19-19JAN00-1/1
