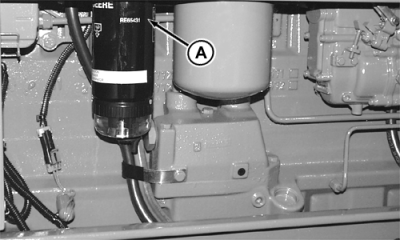

Replacing Water Separator Element-7710 and 78101. Thoroughly clean exterior of filter (A) and filter mounting area. NOTE: Lifting up on ring as it is rotated helps to get it past retaining detent. 2. Rotate retaining ring counterclockwise (left) 1/4 turn. Remove ring with filter element. 3. Remove water separator from filter. Drain and clean water separator, dry with compressed air. NOTE: Notice indexing keys on filter. These keys insure proper alignment of filter to mounting base. 4. Install water separator onto new filter. 5. Index filter until longer, vertical keys are oriented away from engine. Insert filter into mounting base securely. It may be necessary to rotate filter for correct alignment. 6. Install retaining ring to mounting base, making certain dust seal is in place on filter base. Tighten retaining ring until it locks into detent position and a "click" sound can be heard. 7. Bleed fuel system. (See Bleed Fuel System in this section.) |
|
AG,RX15494,3564 -19-19JAN00-1/1 |
