Servicing Fuel Prefilter

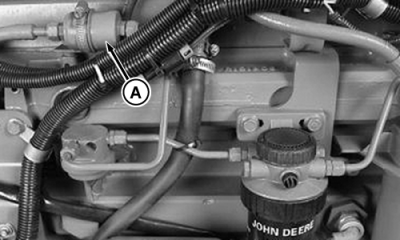

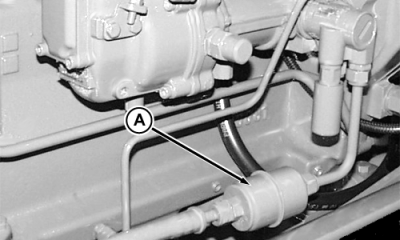

IMPORTANT: Before removing prefilter (A) verify "IN" is marked on fuel tank end of filter. If filter is reused, be sure to install in the same direction as removed. Incorrect installation of filter could cause damage to transfer pump.

1. Verify "IN" mark on end of filter or mark direction of fuel flow.

2. Remove filter from lines.

3. Back flush filter with compressed air. If unrestricted flow is obtained reinstall filter in same direction as removed. Replace clogged or damaged prefilter.

IMPORTANT: Failure to replace clogged or damaged prefilter could result in damaging the transfer pump.

AG,RX15494,3565 -19-19JAN00-1/1
