Bleeding Fuel System-7710 and 7810

1. Turn key switch to ON position.

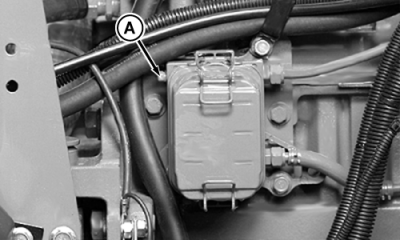

2. Loosen bleed plug (A) on top, left of fuel filter.

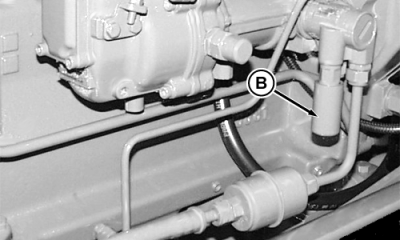

3. Unscrew hand primer (B) until it can be pulled by hand.

4. Push the hand primer until a smooth flow of fuel, free of bubbles, comes out of the filter bleed plug hole.

5. Gently push the hand primer down and close the bleed plug. Tighten plug securely. DO NOT overtighten. Continue operating hand primer until slight pressure is felt.

IMPORTANT: Be sure hand primer is all the way down in barrel, before tightening, to prevent internal thread damage

6. Lock hand primer in position.

If the engine will not start, see Troubleshooting Section or see your John Deere Dealer.

RW55833A
RW26826

AG,RX15494,3569 -19-19JAN00-1/1
