Replacing Fuses1 and Relays

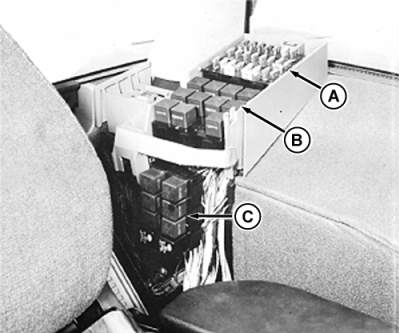

Remove magnetic cover to access fuse panel (A).

Remove top and side cover to access relays on upper panel (B) and lower panel (C).

IMPORTANT: DO NOT install a fuse in location F10. This is for diagnostic readout and calibration of electronic systems used by your John Deere Dealer.

If a fuse is inadvertently installed in this location, be sure key switch is OFF before removing fuse.

RW21128A

1Fuse replacement must be the same rating as the original
