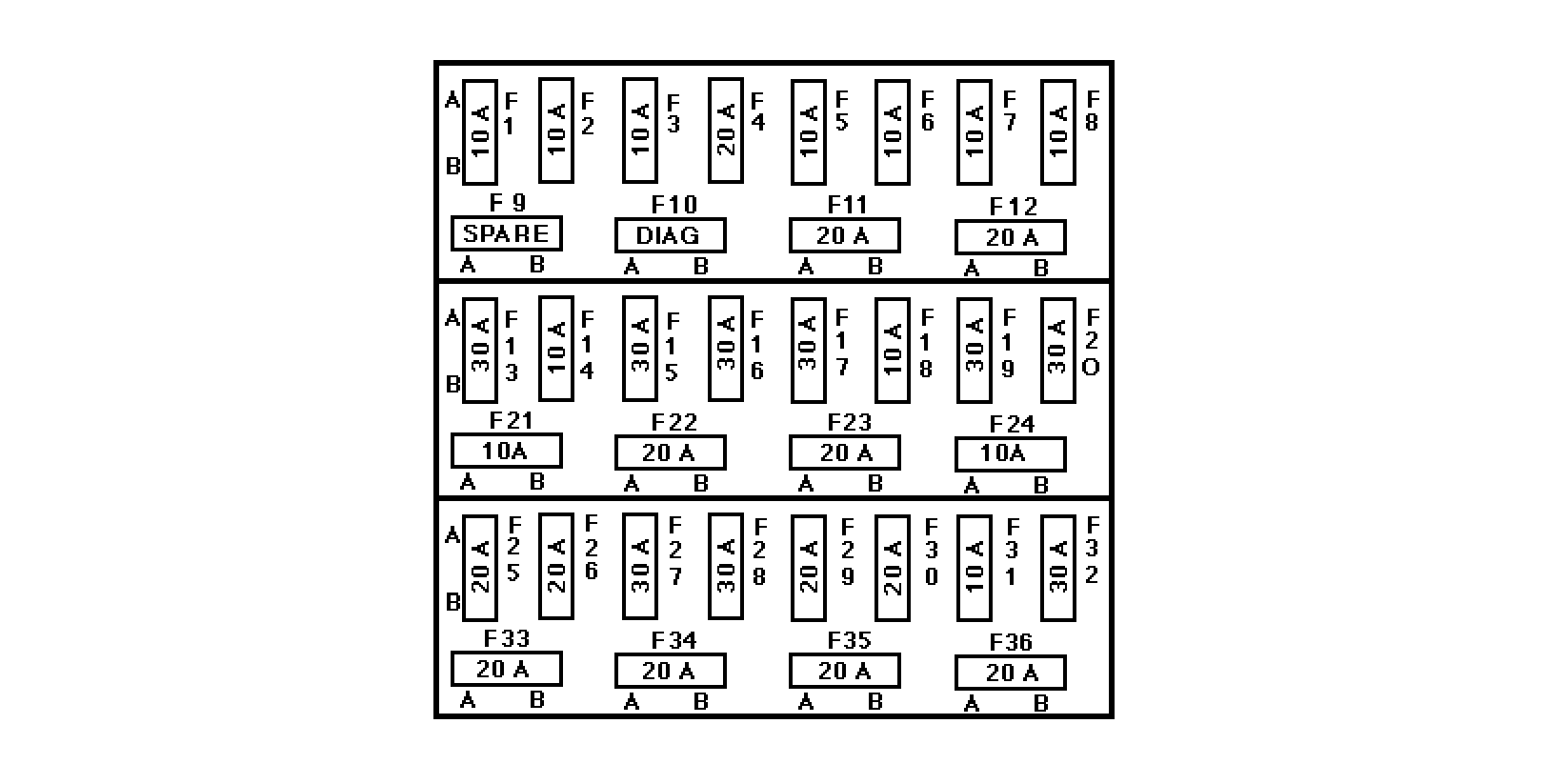

F1-CCU-Function Indicator Lights, Creeper, Radar
F2-CCU-Brakes, PTO, Remote PTO, HMS, MFWD, Differential Lock
F3-Performance Monitor
F4-CCU-Central Control Unit
F5-HCU-Hitch Control
F6-RCU-Reverser Control
F7-Diagnostic Programming, Connector, Warning Horn, Tachometer Display
F8-TLS Controller
F9-Spare
F10-Diagnostic Calibration
|
F11-Seat Height Switch
F12-Reverser Switch
F13-Light Switch-B Terminal
F14-Dome Light, Radio, Horn, Multi-Func. Control, Clock
F15-Convenience Outlet, Lighter, Junction Block, Power Strip
F16-Key Switch
F17-Front and Rear Wiper
F18-Diagnostic Programming Connector
F19-KCB1 Relay-Left Blower-Purge
|
F20-KCB2 Relay-Right Blower-Purge, R/L Blower Switch
F21-Courtesy Lights
F22-Junction Block
F23-Junction Block, Conv. Outlet, Power Strip, Electro-Hydraulic Control Valve
F24-A/C Circuit
F25-Brake Lights
F26-Rear Roof Floods and Roof Beacon
F27-Front Floods
F28-Rear Fender Floods, Right and Left Wrap Lights, Accessory Outlet Pin 2
|
F29-Hi/Lo Head Lights, Loader Lights
F30-Hazard Switch, L/R Turn Relay, Trailer Lights
F31-Seat Controller
F32-Accessory Outlet Pins 4 and 7
F33-Belt-line Floods
F34-Left Tail Light, Accessory Outlet Pin 6
F35-Right Tail Light
F36-Spare
|
