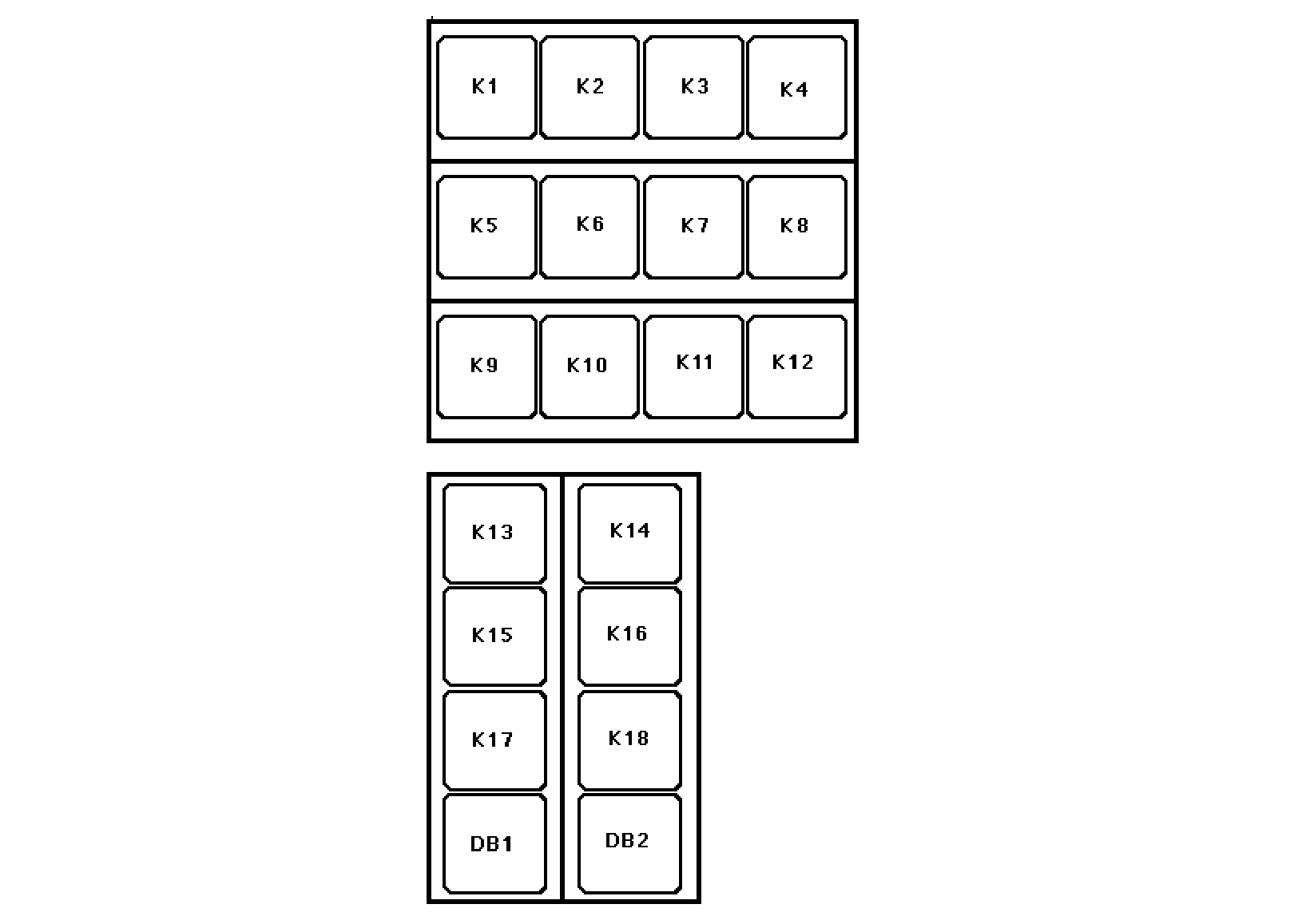

K1-Spare
K2-Rear Roof Floods
K3-Head Lights-Hi Beam
K4-Head Lights-Lo Beam
K5-Front Roof Floods
K6-Rear Fender Floods, Front Wrap Lights
|
K7-Right Turn/Hazard Roof, Trailer Lights
K8-Left Turn/Hazard Roof, Trailer Lights
K9-Belt-line Floods
K10-Spare
|
K11-Brake Lamps
K12-7-Pin Socket Accessory
K13-Electronics (ELX) Relay-1
K14-Accessory-1
K15-Front/Rear Wiper
|
K16-Heating, Ventilation, Air Conditioning
K17-Not Used
K18-Not Used
DB1-Six Diodes
DB2-Six Diodes
|
