Replacing Front Lights

1. Remove side shields.

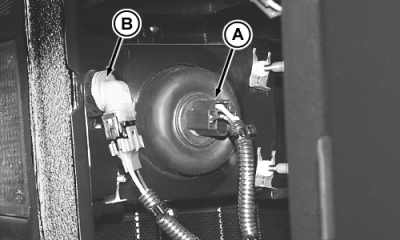

2. Remove connector (A). Remove dust boot, and unlatch retaining spring. Remove light element and install new element. Latch retaining spring. Install dust boot and connector.

3. Twist connector 1/4 turn and pull to remove for side light (B). Replace element and install connector.
