Adjusting Head Lights

RW22200A

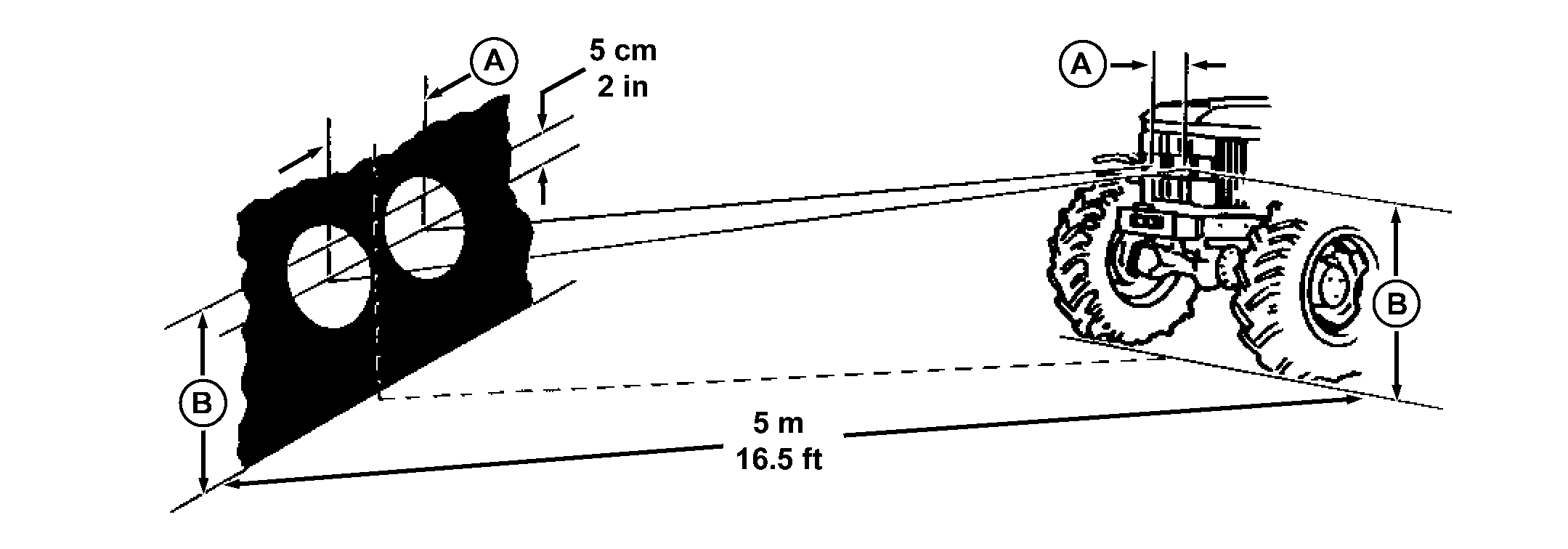

1. Park tractor on a level surface 5 m (16.5 ft) from a vertical wall.

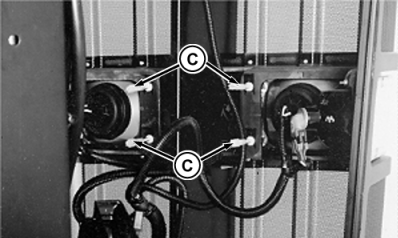

2. Use adjusting screws (C) to adjust each headlight so the bright-dark border forms a horizontal line 5 cm (2 in.) lower than headlight height (B).

3. Switch to high beam. Laterally align head lights so the distance between light beam center on test surface corresponds to distance (A) between head lights.

RW22201A

AG,RX15494,3577 -19-19JAN00-1/2

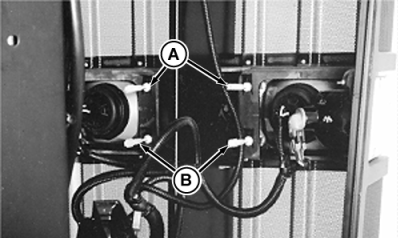

4. Adjust head lights by self-locking screws on the inner top (A) and inner-bottom (B) of each light.

Beam Direction Screw Adjustment

Raise Turn Screw (A) Counterclockwise
Turn Screw (B) Clockwise

Lower Turn Screw (A) Clockwise
Turn Screw (B) Counterclockwise

Inward Turn Screw (A) and (B) Counterclockwise

Outward Turn Screw (A) and (B) Clockwise
