Replacing Roof Front Flood Light

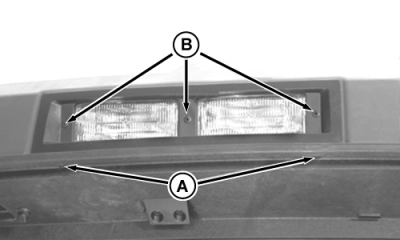

Remove screws (A) holding light bezel in roof.

Remove screws (B) to remove light from bezel.

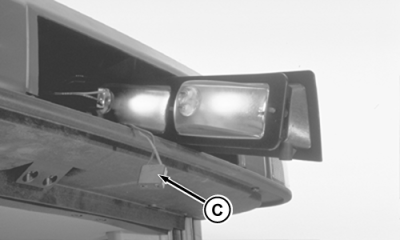

Disconnect light element from connector (C) and connect new element.

RW55420A
RW55421A

AG,RX15494,3578 -19-19JAN00-1/1
