Attaching PTO-Driven Implement- Optional

causym CAUTION: Entanglement in rotating driveline can cause serious injury or death.

Keep PTO shield and driveline shields in place at all times. Make sure rotating shields turn freely.

Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning PTO-driven equipment.

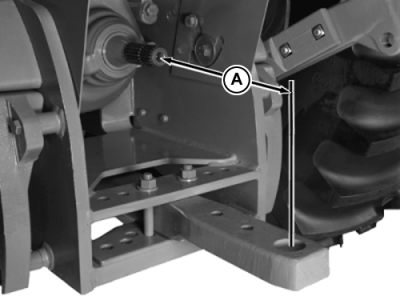

1. Lock drawbar in center position and remove clevis assembly, if implement will be attached to drawbar. Drawbar hitch pin must be behind end of PTO shaft (A).

Specification

PTO Shaft End to Hitch Pin Hole -1000 rpm (1-3/4 in. Diameter) 508 mm (20.0 in.)

2. Attach implement to drawbar before connecting PTO driveline. If implement will be connected to quick-coupler, be sure drawbar will not interfere. Remove it if necessary.

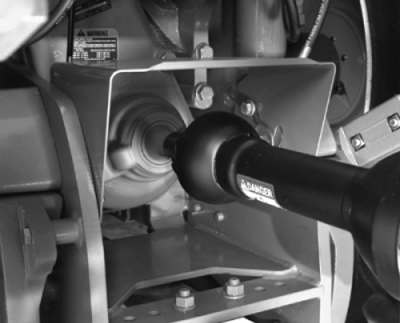

3. Connect driveline to PTO shaft. Turn shaft slightly by hand, to line up splines. Be sure yoke is in correct position and firmly locked.

4. Lower master shield. Set shield in intermediate position if necessary for clearance.
