Adjusting Implement Level

1. Adjust center link to level implement front-to-rear.

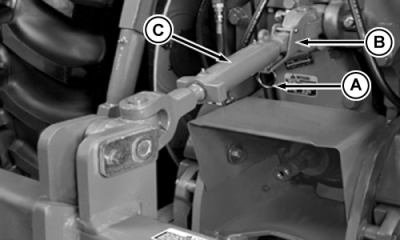

2. Remove lock pin (A). Disengage handle (B) and rotate center portion (C) to lengthen or shorten center link.

Specification

CENTER LINK ADJUSTMENT -Length of Center Link

747-868 mm (29-1/2-34-1/4 in.)

3. Push handle down and install lock pin to hold center link in position. Measure between centers of attaching pins.

AG,RF30435,2125 -19-18NOV99-1/2

4. Adjust either lift link to level implement side-to-side. Raise sleeve (A) and slide over pin (B). Use a wrench to rotate center portion of lift link (C).

5. Measure between centers of attaching pins.

Specification

LIFT LINK ADJUSTMENT -Range

1030-1150 mm (40-1/2-45-1/4 in.)

AG,RF30435,2125 -19-18NOV99-2/2
