Checking Park Brake System-Powershift Transmission

causym CAUTION: Avoid personal injury. Always wear your seat belt.

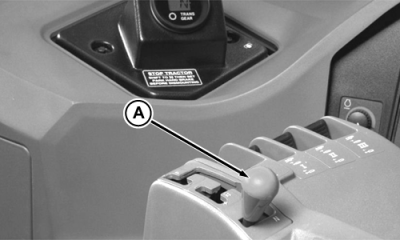

Park tractor on incline and move gear shift lever (A) to NEUTRAL position and engage park brake.

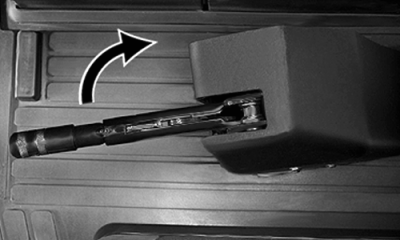

Park brake should be adjusted immediately if tractor does not hold with park brake engaged.

RW26859
RW56076

AG,RF30435,2180 -19-03FEB00-1/1
