Changing Transmission Oil-Powershift Transmission

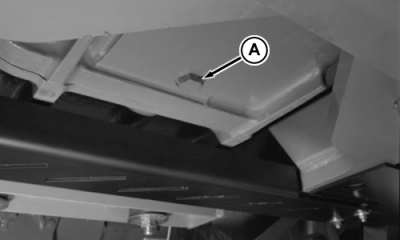

Drain transmission (A) with tractor on level ground.

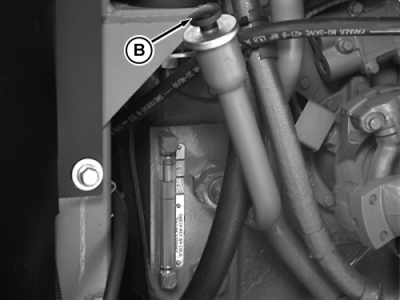

Fill transmission (B) with HY-GARD Transmission/Hydraulic Oil as specified in Fuels, Lubricants and Coolant Section.

Specification

Operate engine for at least 5 minutes at 2100 rpm, with transmission in NEUTRAL position with park brake engaged, before driving the tractor. Stop engine and allow oil level to stabilize in the sight gauge for at least 5 minutes. Recheck level and fill as necessary.

NOTE: The oil level may stabilize at a higher level when oil temperature is warm-this is normal.

Oil with a milky or foamy appearance, while tractor is running, and after the engine is stopped, is normal.

AG,RF30435,2191 -19-19NOV99-1/1
