Lubricating Hitch Sensor

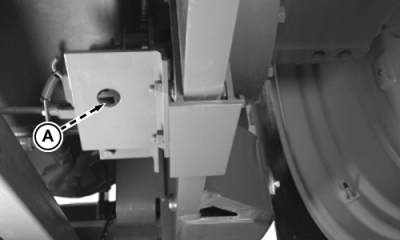

Lubricate the hitch sensor (A), located on left side draft link support, every 250 hours, if operated in extremely wet conditions. 1 Lubricate until all air is forced through the grommet.

Use John Deere HD Non-Clay Grease as specified in Fuels, Lubricants and Coolant Section.

RW56182A

1Under normal conditions, lubricate sensor annually.

AG,RF30435,2207 -19-19NOV99-1/1
