OMAR172611: 9100, 9200, 9300, and 9400 Tractors( 30 001- ), Block File: AG_RF30435_2213_19

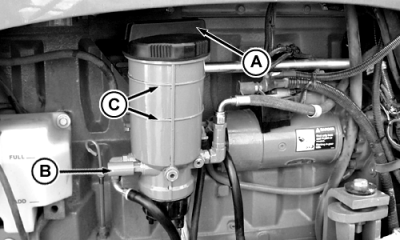

Loosen and remove cap (A) on filter housing.

NOTE: Depress primer (B) to loosen filter.

Remove and discard old filter.

Depress primer (B) as necessary to refill fuel level to area between marks (C), which correspond to marks on center tube inside filter housing.

NOTE: Fuel level below the MIN mark can result in stalling. Fuel level above the MAX mark can cause fuel to overflow from the filter housing.

Install new filter and tighten cap.

Operate engine to check for leaks.

AG,RF30435,2213 -19-02FEB00-1/1
