Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console


RW26189

Corner Post

RW26659

Rear Cab Post

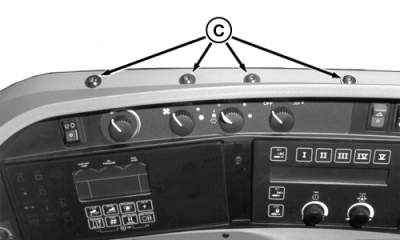

RW26741

Side Console

AG,RX15494,3292 -19-20NOV99-1/1
