Bleeding Fuel System-9200, 9300, 9400

IMPORTANT: Fuel system must be bled after replacing fuel filter or running out of fuel. Failure to do so will result in extreme hard-starting.

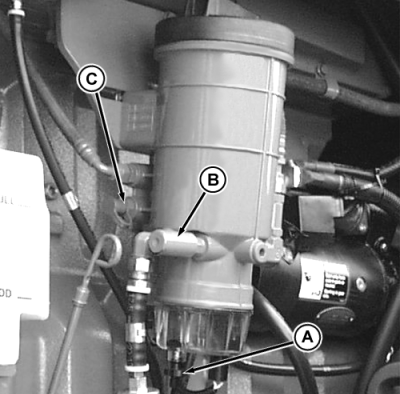

Open drain valve (A) and pump primer (B) to drain water from water separator

Close drain valve (A)

Loosen bleed valve (C) and pump hand primer (B) until a air-free stream of fuel comes out.

NOTE: If engine has run out of fuel, perform the following:

Pump hand primer (B) 100-200 strokes

Crank engine for 20 seconds (maximum)

Pump hand primer an additional 100 strokes if engine does not start

Crank engine again for 20 seconds (maximum)

AG,OURX892,394 -19-17AUG00-1/1
