Operating Windshield Wiper and Washer

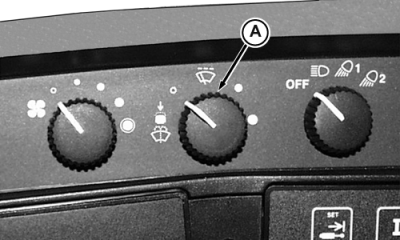

Rotate switch (A) to activate four wiper positions:

• Off
• Intermittent
• Slow
• Fast

Push switch in to operate optional windshield washer.

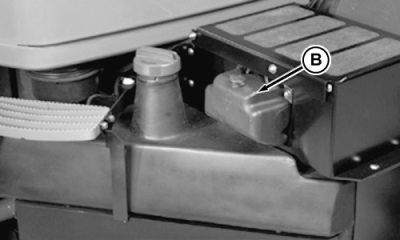

Fill washer reservoir (B) with non-freezing solvent.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening.

AG,RF30435,2025 -19-02FEB00-1/1
