Using a Booster Battery/Charger

CAUTION: Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Before connecting or disconnecting a battery charger, turn charger OFF. Make last connection and first disconnection at a point away from batteries.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system and can cause battery to explode.

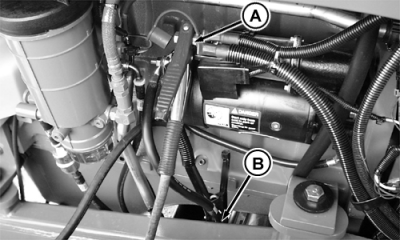

1. Attach one end of cable (red) to the remote positive terminal (A) of the starter. Attach the other end of the cable (red) to the positive terminal of booster battery.

2. Attach one end of the second cable (black) to negative terminal of booster battery. Attach the other end of the cable (black) to the battery ground (B) at tractor frame.

3. Remove ground cable (B) first when disconnecting.

1. Attach positive charger lead to positive remote terminal (A) with charger in OFF position. Attach negative charger lead to negative ground (B) at tractor frame, away from batteries.

2. Switch charger to ON position and charge battery according to charger manufacturers instructions.

3. Switch charger to OFF position. Remove negative charger lead first, then positive lead.

AG,RF30435,2049 -19-02FEB00-1/1
