Using Field Cruise and Foot Decelerator

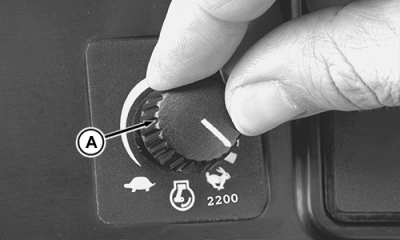

Field Cruise -Push engine throttle all the way forward and turn knob (A) to set engine speed as follows:

• OFF (Turn knob fully clockwise)

  Use for heavy tillage field work, such as moldboard plowing, chisel plowing or ripping

• ON (Turn knob counter-clockwise from detent)

  Use when constant speed is required for a particular application, such as planting, fertilizing, or applying herbicide

  Engine speed can be adjusted from 1450-2100 rpm by rotating knob

  Engine speed remains constant at set speed

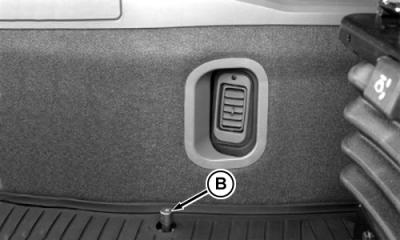

Foot Decelerator ¹ -Push button (B) to lower engine rpm until released. Speed resumes when released.

AG,RF30435,2064 -19-02FEB00-1/1
