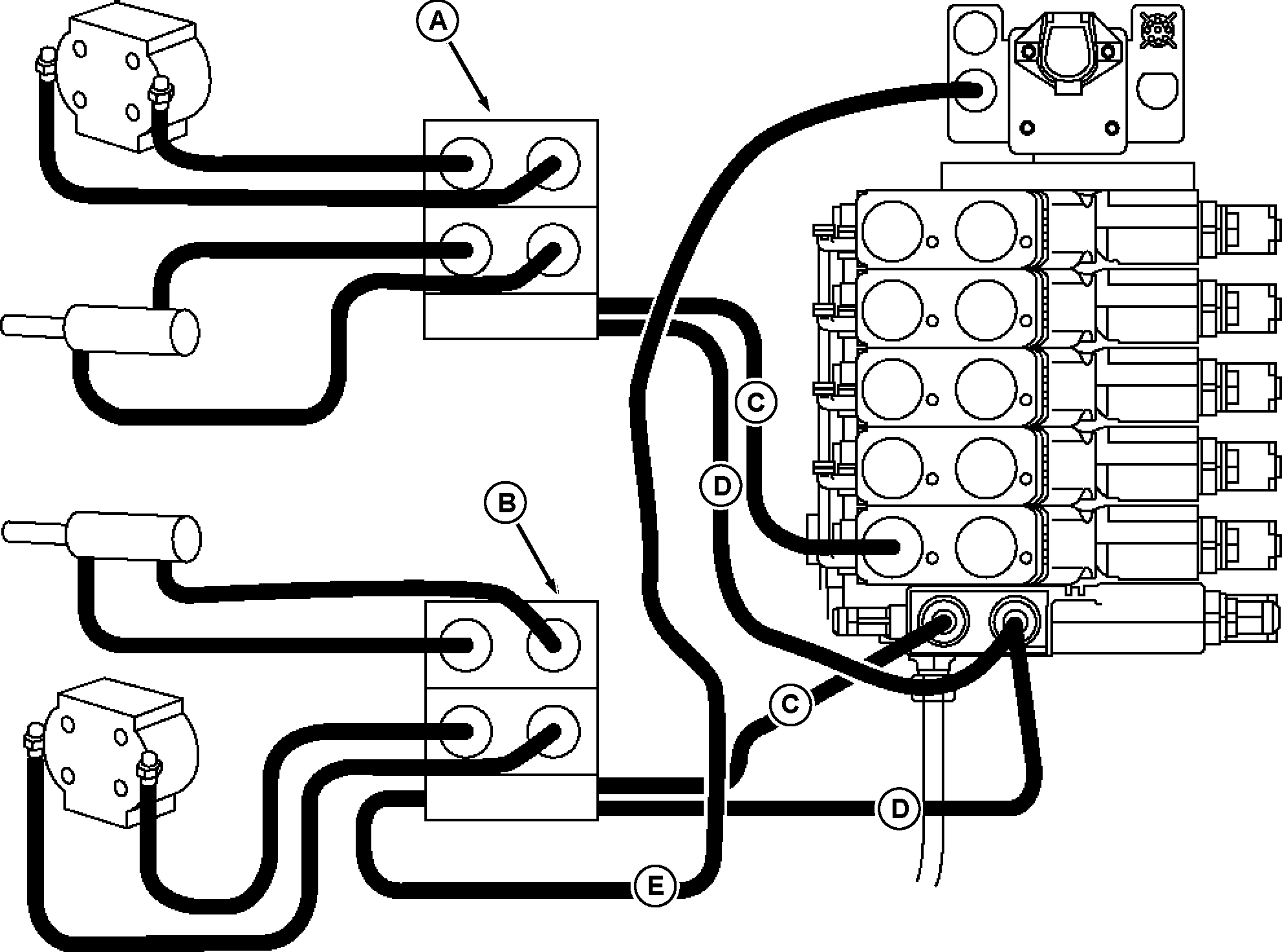

A-Implement Control Valve: Open Center - or - Closed Center with Unloading Valve - or - Closed Center without Unloading Valve

B-Implement Control Valve: Closed Center with Load Sensing

C-Pressure Line
D-Return Line

E-Load Sense Line

AG,RF30435,2093 -19-18NOV99-1/1
