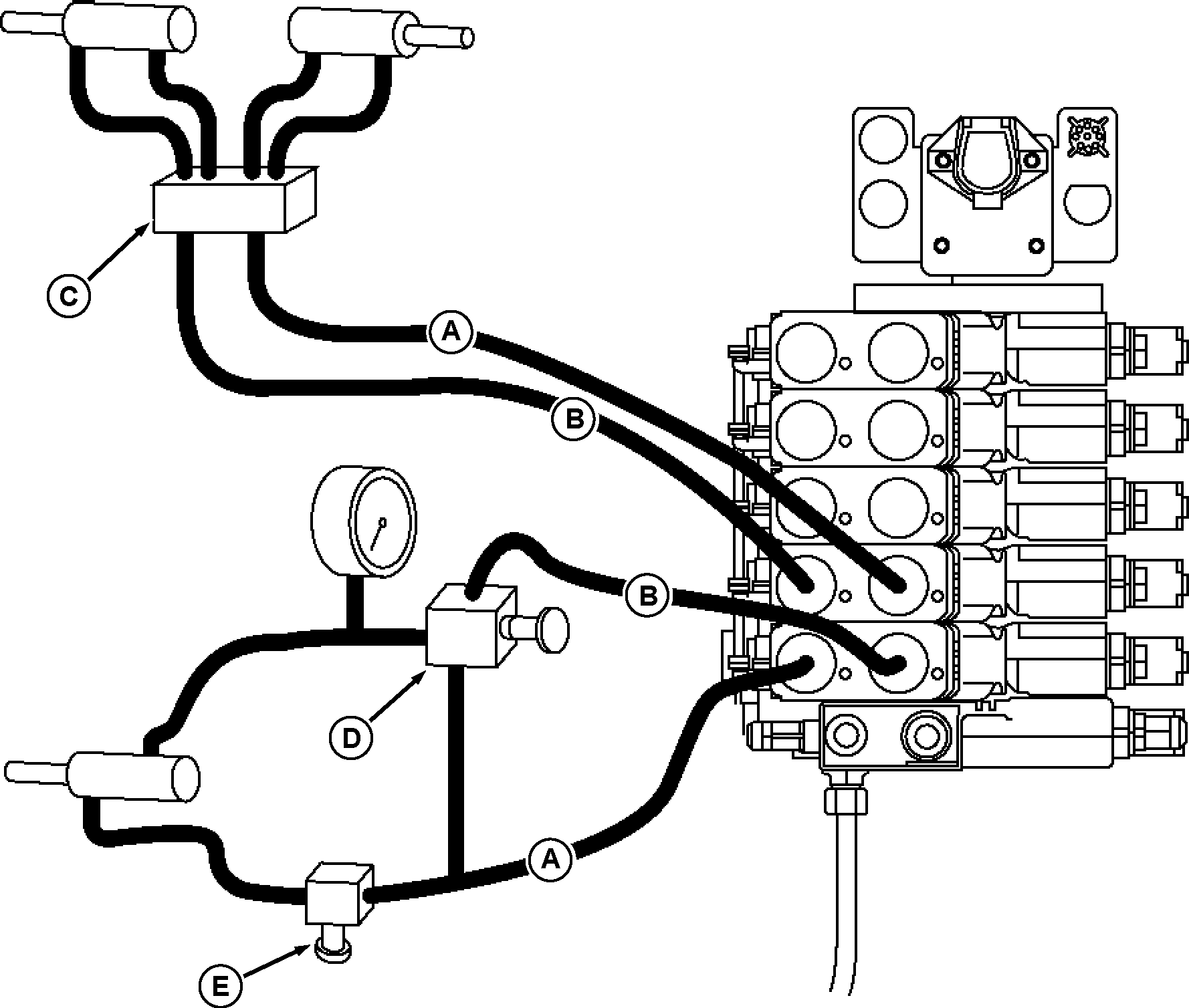

Implement Connection Example 2-Pressure Control Valve Applications (Grain Drills or Air Seeders With Constant Down-Pressure System)- Less Hitch

RW56434A

A-Extend Coupler Line
B-Retract Coupler Line

C-Selector Valve

D-Pressure Control Valve

E-Transport Lock Valve

AG,RF30435,2095 -19-18NOV99-1/1
