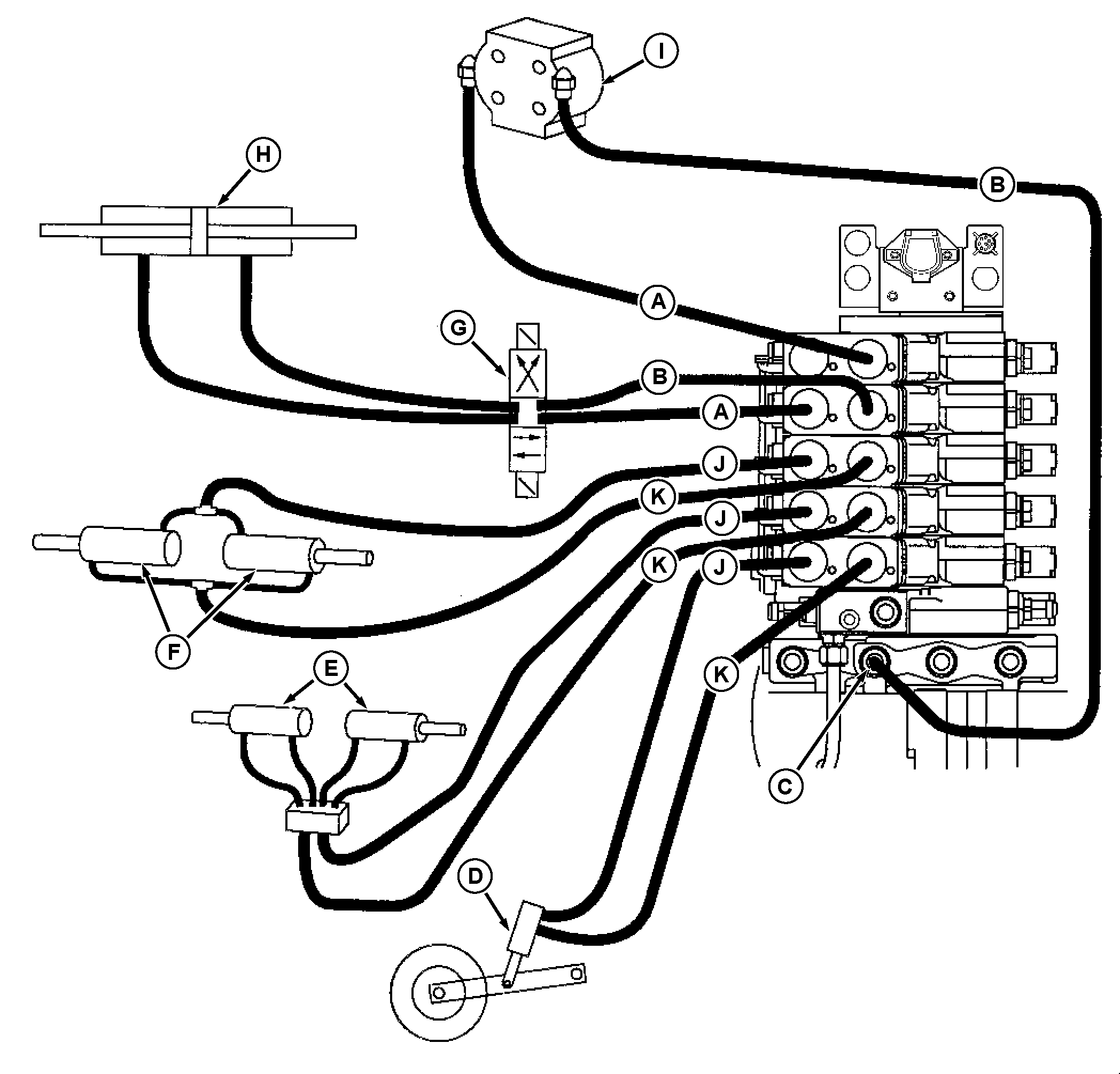

A-Pressure Line
B-Return Line
C-Power Beyond Return Coupler

D-Raise/Lower Cylinder
E-Markers
F-Fold

G-Closed Center Valve Without Load Sense Port
H-Steerable Coulter

I-Hydraulic Motor
J-Extend Coupler Line
K-Retract Coupler Line

AG,RF30435,2100 -19-18NOV99-1/1
