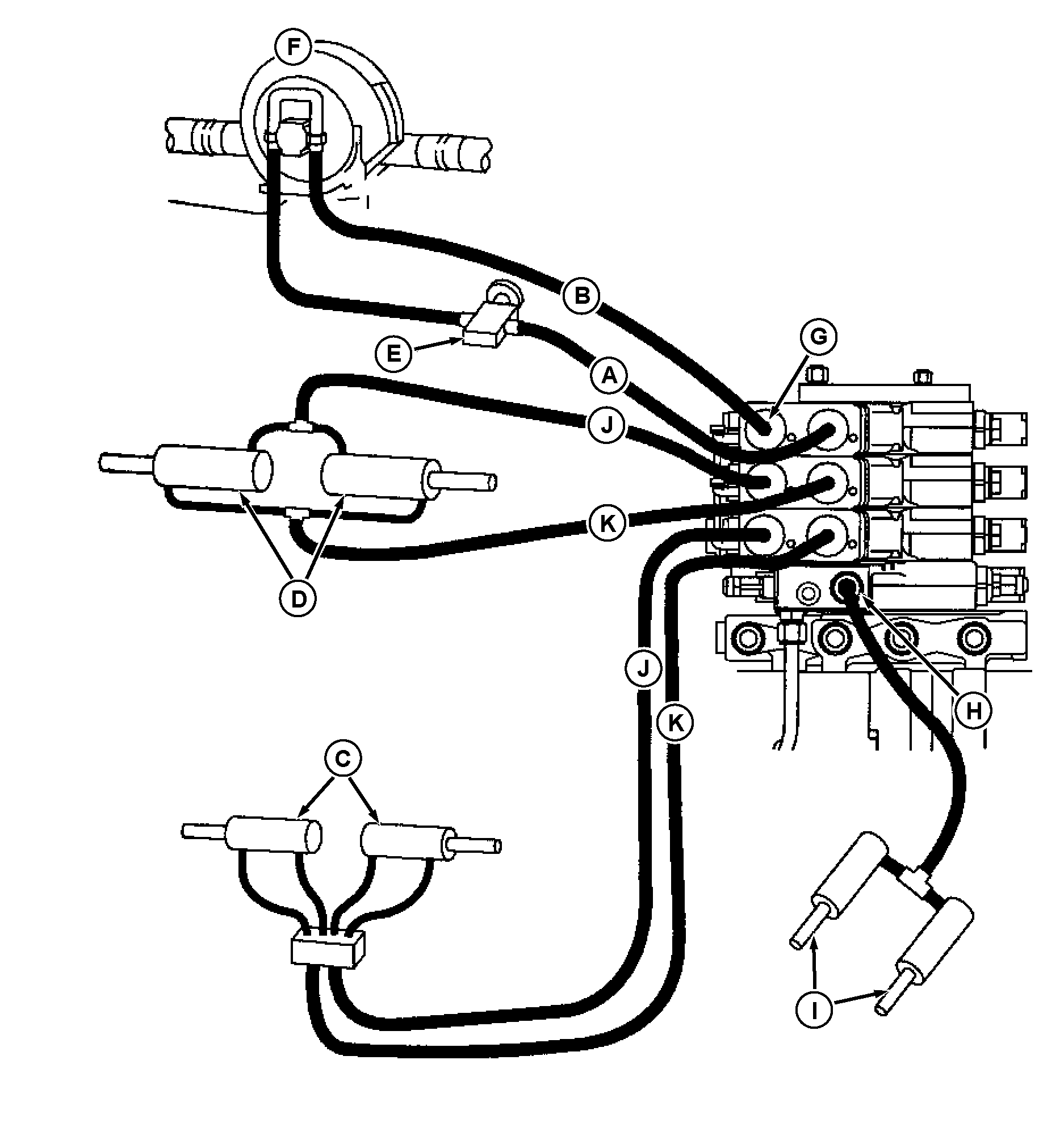

Implement Connection Example 5-Planter With Vacuum Motor and Return Line to SCV Using Motor Return Tip-With Hitch

RW56263A


A-Pressure Line
B-Return Line
C-Marker


D-Fold
E-Flow Control Valve (Wide Open)


F-Vacuum Motor
G-Motor Return Tip
H-Auxiliary Hitch Port


I-Lift Cylinders
J-Extend Coupler Line
K-Retract Coupler Line

AG,RF30435,2101 -19-18NOV99-1/1
