Observing Drawbar Load Limitations

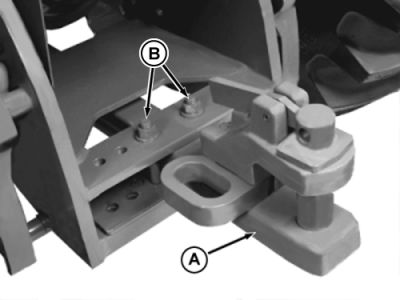

IMPORTANT: Certain heavy equipment can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough ground. Maximum static vertical load on drawbar should not exceed:

9100: 1861 kg (4100 lb)

9200, 9300 or 9400: 2043 kg (4500 lb)

Tighten drawbar locking bolts (B) to 435 N·m (322 lb-ft) and drive slowly, if heavier loads are expected.
