Adjusting Drawbar Side-to-Side

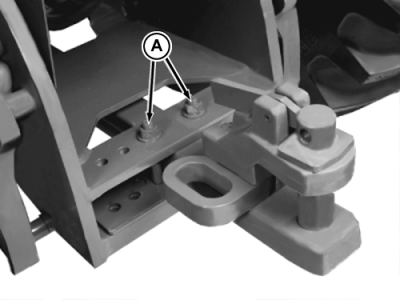

1. Remove drawbar locking bolts (A).

2. Slide drawbar to desired position.

3. Install a locking bolt against each side of drawbar.

Drawbar Locking Bolts - Specification

Bolt -Torque 435 N·m (322 lb-ft)

RW56127A

AG,RF30435,2105 -19-01SEP00-1/1
