Installing Clevis Assembly

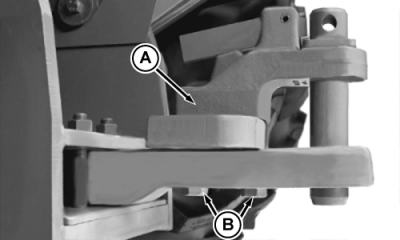

Clevis assembly (A) must be attached only to the top of the drawbar. Tighten two cap screws (B).

Clevis Cap Screws - Specification

Cap Screw -Torque 750 N·m (553 lb-ft)

RW56129A

AG,RF30435,2106 -19-01SEP00-1/1
