Using Float Position

Equipment having depth-gauge wheels may require floating operation to follow ground contours.

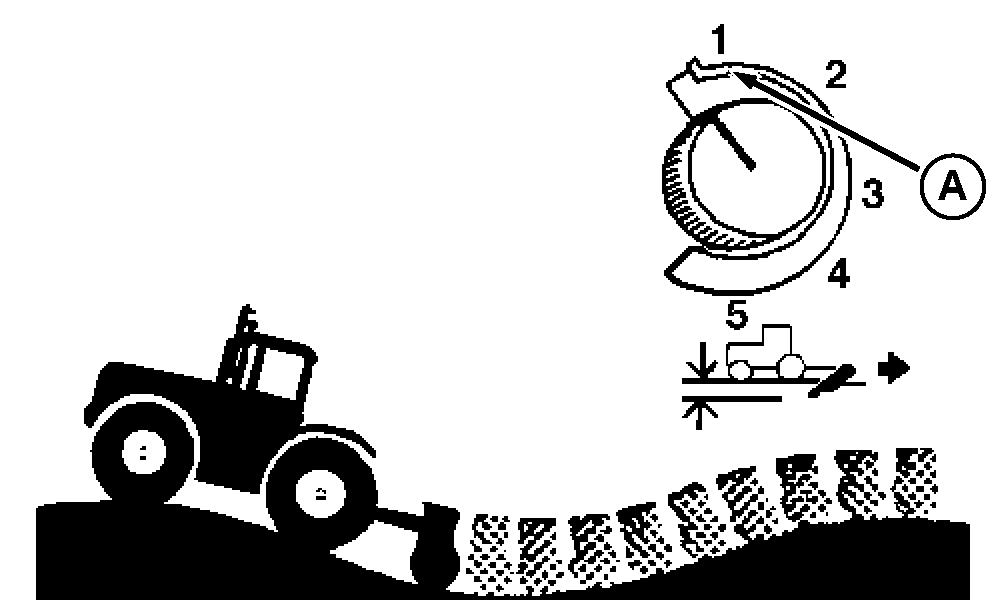

Set load/depth control to "position" control (A) and push hitch control lever fully forward.

NOTE: Lift links can be adjusted for lateral float. (See Lateral Float in this section.)

AG,RF30435,2120 -19-18NOV99-1/1
