Adjusting Implement Level

1. Adjust center link to level implement front-to-rear.

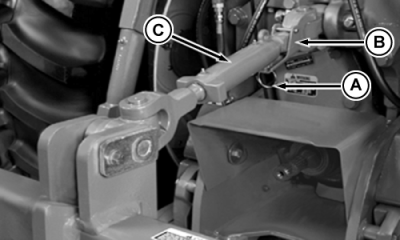

2. Remove lock pin (A). Disengage handle (B) and rotate center portion (C) to lengthen or shorten center link.

Center Link - Specification

Adjustment -Length 747-868 mm (29.5-34.3 in.)

3. Push handle down and install lock pin to hold center link in position. Measure between centers of attaching pins.

RW56104A

AG,RF30435,2125 -19-01SEP00-1/2

4. Adjust either lift link to level implement side-to-side. Raise sleeve (A) and slide over pin (B). Use a wrench to rotate center portion of lift link (C).

5. Measure between centers of attaching pins.

Lift Link - Specification

Adjustment -Length 1030-1150 mm (40.5-45.3 in.)

RW56105A
RW56106A
