Hitch Conversion-Convertible Quick Coupler

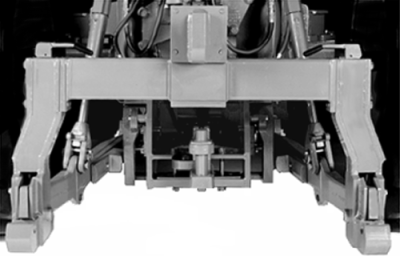

Quick-coupler is convertible to Category 4 or Category 4N. Use Category 4 whenever possible, especially for heavy loads. The greater width gives more strength.

NOTE: Your John Deere Dealer can supply parts to adapt Category 4 hitch to Category 4N implements.

Use following procedure to convert Quick-coupler:

RW26137

AG,RF30435,2127 -19-18NOV99-1/4

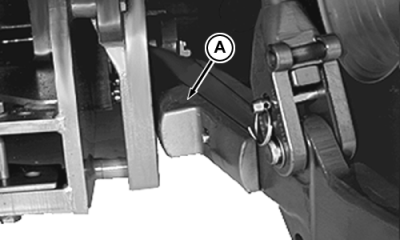

1. Turn thick ends (A) forward on draft link bumpers for Category 4; thin ends forward for Category 4N.

2. Loosen rear cap screw and remove forward cap screw. Pivot bumper on rear cap screw. Reinstall front cap screw. Tighten cap screws securely.

RW56108A

AG,RF30435,2127 -19-18NOV99-2/4

3. Support center of quick-coupler.

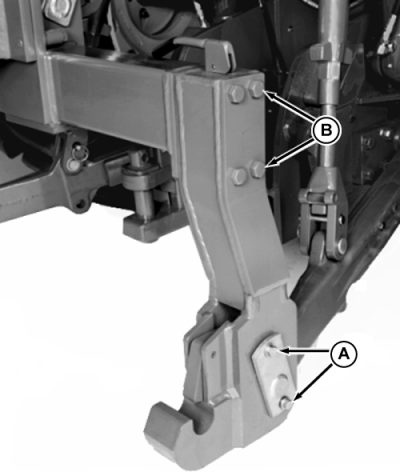

4. Remove pin retaining bolts (A) and pins from draft link.

5. Remove side member cap screws (B).

RW56109A

AG,RF30435,2127 -19-18NOV99-3/4

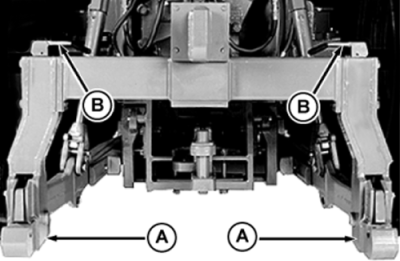

6. Switch ends with quick-coupler side members (A) (left member to right end and right to left). Tighten cap screws securely.

7. Turn latch handles (B) inward.
