Installing QUIK-TATCH Frame Weights-Optional

Up to 20 QUIK-TATCH weights can be installed on rear frame of tractor.

When required, install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to 230 N·m (170 lb-ft).

RW55346A
RW55347A

AG,RF30435,2144 -19-19NOV99-1/2

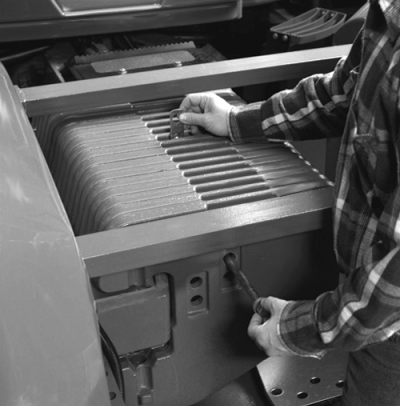

When eight or more weights are installed, insert retainers between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N·m (170 lb-ft).

RW56137

AG,RF30435,2144 -19-19NOV99-2/2
