Towing-Rear Wheels Off Ground

If tractor must be towed, the best method is to lift rear axle and tow tractor backward.

CAUTION: Stop engine and remove key before working in hinge area.

IMPORTANT: Install hinge lock on tractor hinge cylinders before transporting tractor.

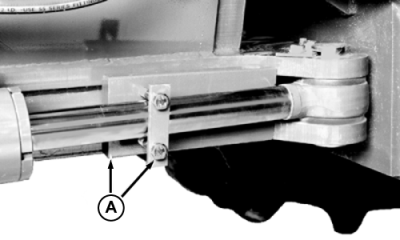

1. Steer tractor straight ahead to install hinge lock (A).

2. Disconnect front axle by removing front axle drive shaft.

3. Release park brake lever if equipped with Powershift transmission.

CAUTION: Never tow faster than 16 km/h (10 mph).

4. Lift tractor by rear axle housings. Attach tow bar to tractor drawbar. Couple as closely as possible.

5. Tow tractor slowly and cautiously.

IMPORTANT: Be sure hinge lock is removed from hinge area before operating tractor.

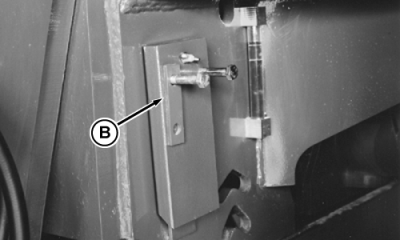

6. Store hinge lock (B) on tractor.

AG,RF30435,2160 -19-19NOV99-1/1
