OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2167_19_19NOV99.htm

Opening Side Shields

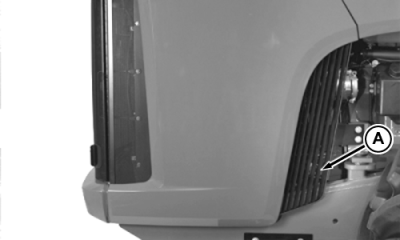

Pull handle (A) to open side shield.

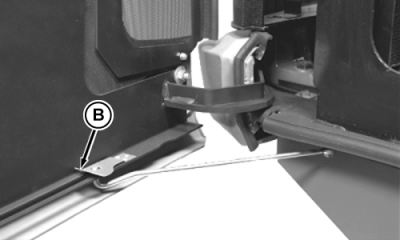

Lift latch (B) to release shield guide rod.

RW56152A

RW56153A

AG,RF30435,2167 -19-19NOV99-1/1
