OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2179_19

Checking Neutral Start System

SERVICE INTERVAL - 250 HOURS

Powershift Transmission

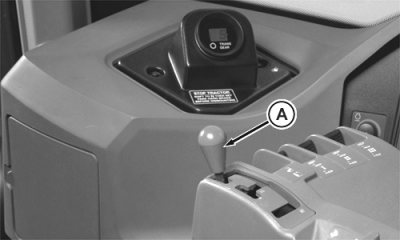

Fully depress clutch and brake pedals. Move gear shift lever (A) from NEUTRAL position to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

12-Speed Syncro or 24-Speed POWRSYNC Transmission

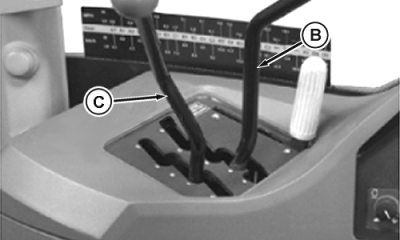

Fully depress clutch and brake pedals. Move range selector lever (B) into A-range and the speed selector lever (C) into 1 forward (12-Speed Syncro and 24-Speed POWRSYNC). Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

Powershift Transmission

RW26858

AG,RF30435,2179 -19-03FEB00-1/1
