Changing Engine Oil and Filter

SERVICE INTERVAL - 250 Hours *

* 375 hours if PLUS-50 oil and a John Deere Filter are used



IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.5 percent.

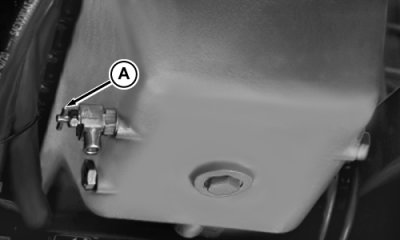

Operate engine to warm oil. Stop engine. Turn crankcase drain fitting (A). Tighten fitting after oil drains out.

NOTE: Oil flow can be controlled by attaching a hose to the drain fitting.

Remove filter (B). Remove old packing and clean filter mounting surface. Apply a thin film of oil to new packing and install new filter. Hand-tighten filter. Do not overtighten.

Refill crankcase with seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolant Section.)

Capacities with filter

9100... 30 L (8 gal)
9200... 42 L (11 gal)
9300... 42 L (11 gal)
9400... 42 L (11 gal)




Start engine and check for leaks.

Stop engine. Recheck oil level.

RW56162A
RW56163A

9100

RW56164A

9200-9300-9400

AG,RF30435,2187 -19-30AUG00-1/1
