Checking Axle Oil Level-Powershift Transmission

SERVICE INTERVAL - DAILY OR 10 HOURS

Put transmission in NEUTRAL position and apply the hand brake, Operate engine at 2100 rpm, for at least 5 minutes (or longer with cold oil) to fill axles.

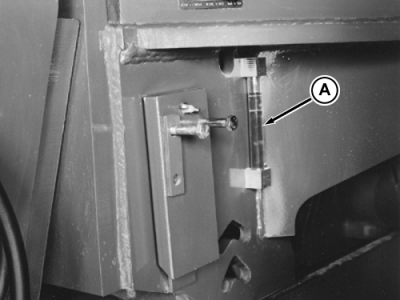

Stop engine and allow the oil level to stabilize in the sight gauge (A) for at least 5 minutes.

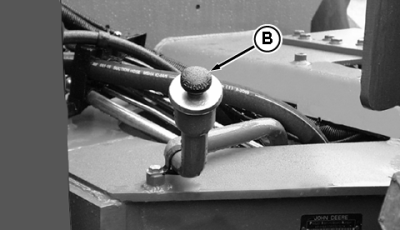

If the oil level is below bottom mark, add Transmission-/Hydraulic Oil at fill tube (B).

NOTE: Axle circuit is vented through the hydraulic reservoir. Remove hydraulic reservoir cap to aid axle filling.

Recheck level and fill as necessary.
