Changing Transmission Oil-Powershift Transmission

SERVICE INTERVAL - 1500 HOURS

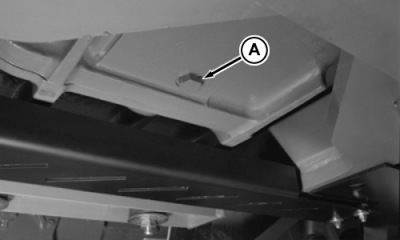

Drain transmission (A) with tractor on level ground.

Fill transmission (B) with transmission-Hydraulic Oil as specified in Fuels, Lubricants and Coolant Section.

Capacities *

Without PTO... 51 L (13.5 gal)
With PTO... 53 L (14.0 gal)

* Includes axles



Operate engine for 5 minutes at 2100 rpm, with transmission in NEUTRAL with park brake engaged.

Stop engine and allow oil level to stabilize in the sight gauge for at least 5 minutes.

Recheck level and fill as necessary.

NOTE: The oil level may stabilize at a higher level when oil temperature is warm-this is normal.

RW56195A
RW56196A

AG,RF30435,2191 -19-30AUG00-1/1
