Changing Axle Oil Filter-Powershift Transmission

SERVICE INTERVAL -

INITIAL - 100 HOURS
SCHEDULED - 750 HOURS



Check service code, if indicator light comes on.

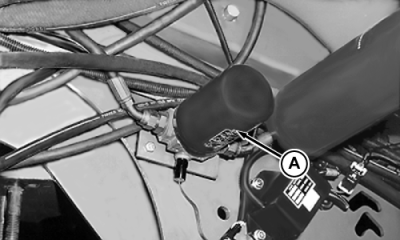

If a code-CCU 52 is shown, remove axle oil filter (A). Install new filter and tighten one half turn after seal contacts filter housing base.

Check axle oil level and fill as required.

RW56267A

AG,RF30435,2196 -19-17AUG00-1/1
