OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2199_19

Replacing Hydraulic Filter

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

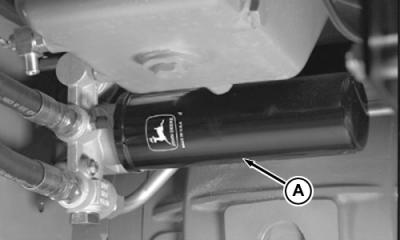

Replace hydraulic filter (A), if hydraulic functions are slow or if indicator light comes on. Install new filter and tighten one half turn after seal contacts filter housing base.

Check reservoir oil level and fill as required.

AG,RF30435,2199 -19-17AUG00-1/1
