OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2201_19

SERVICE INTERVAL - DAILY OR 10 HOURS

causym CAUTION: Stop engine and remove key before working in hinge area.

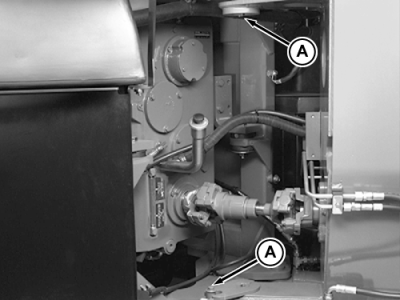

Lubricate upper and lower hinge pins (A) with John Deere HD Moly Non-Clay grease specified in Fuels, Lubricants and Coolant Section.

AG,RF30435,2201 -19-17AUG00-1/1
