OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2207_19

Lubricating Hitch Sensor

SERVICE INTERVAL - ANNUALLY *

* 250 Hours if operated in extremely wet conditions

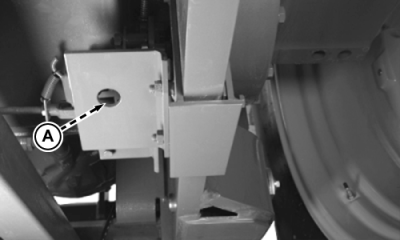

Lubricate the hitch sensor (A), located on left side draft link support, every 250 hours, if operated in extremely wet conditions. ¹ Lubricate until all air is forced through the grommet.

Use John Deere HD Non-Clay Grease.

¹Under normal conditions, lubricate sensor annually.

AG,RF30435,2207 -19-30AUG00-1/1
