Cleaning Fuel Tank Vent Filter-9100

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

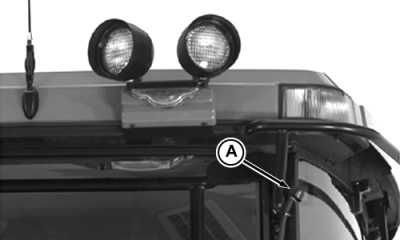

The fuel tanks are vented through a fuel tank vent filter (A). Remove filter and clean in soapy detergent solution.

Blow dry with compressed air and replace.

RW26174

AG,RF30435,2215 -19-17AUG00-1/1
