Replacing Fuses and Relays

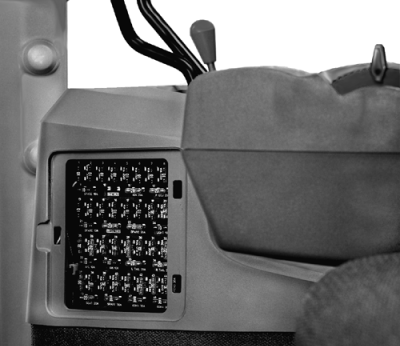

Remove cover to access fuse panel.

Remove upholstery from side console to access relays.

IMPORTANT: DO NOT install a fuse in location F10. This is for diagnostic readout and calibration of electronic systems used by your John Deere Dealer.

Fuse replacement must be the same rating as the original.
